Inside Your Product™

RMA Technologies Inc. is your entire electronics engineering and manufacturing department.

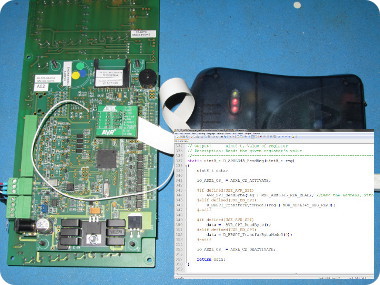

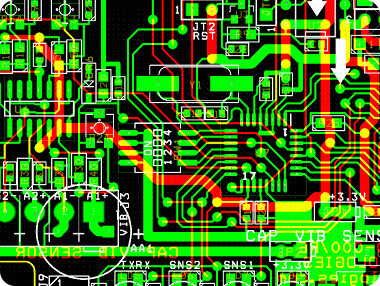

We provide electronics hardware design, software design, and mechanical design as well as manufacturing services for your products. Our experience coupled with comprehensive procedures and checklists help us get it right the first time! We can assist quickly and efficiently with your new product design or project, solutions to existing headaches, small or large volume manufacturing, or to simply complement your own design staff.

Our clients have included IBM Canada, COMDEV, Canlyte, and numerous other large and small manufacturing companies. Projects have ranged from lighting controls, oxygen sensors, printing presses, emergency lighting controls, LED illuminators, to antenna test equipment.

Arduino Compatible

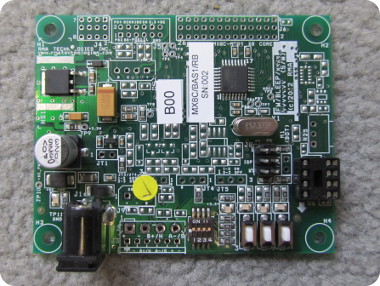

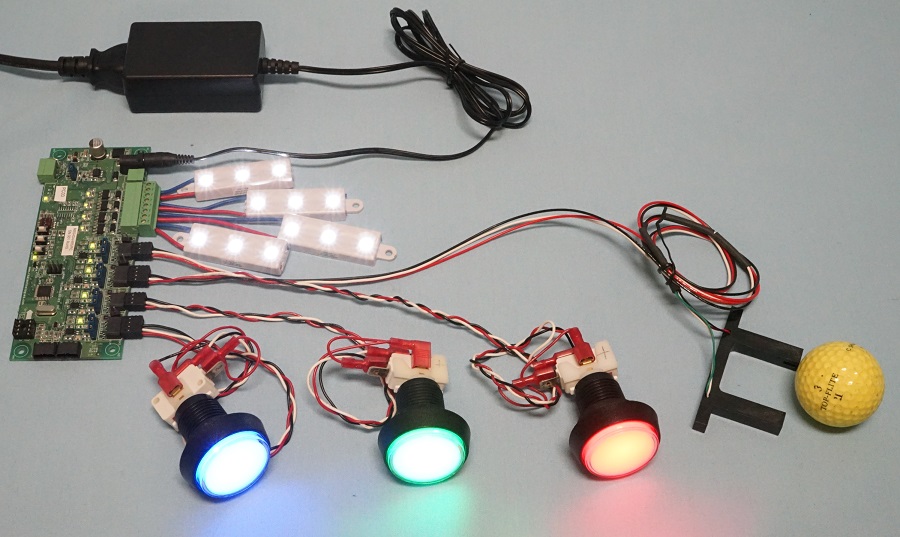

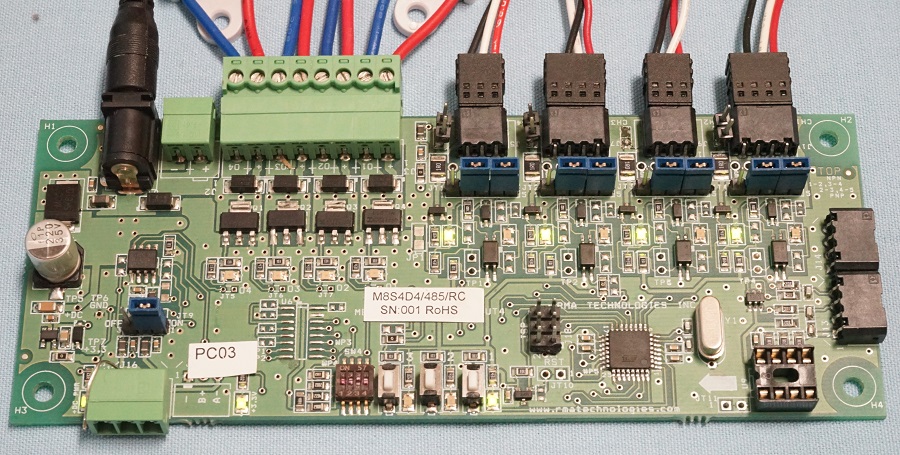

M8S4D4

AtMega328 4 Switch/Sensors 4 DC outputs

Write code using the Arduino IDE
ATMega328 microprocessor - 16MHz
Program with any AVR ISP programmer
Comes with a library of commands
4 switch/sensor inputs:

4 switches or sensors
Selectable NPN, PNP, or analog
4 DC outputs for LEDs in switches

4 DC outputs with PWM control
3 board adjust switches + LEDs

Create simple menus

1 four position DIP switch
2 I2C bus connectors
1 serial interface

RS485 half duplex

Optional with purchase:

ISP programmer
Illuminated RGB buttons
LEDs
Sensors
Power adapters

Video

PCB Families

USB I/O Family

Family of I/O boards with a USB port

USB Core Board:
- 90USBC Features:
  - Microprocessor: AT90USB647
  - Power Supply: 12-16 VDC
  - Communication: USB, RS 485, I2C, SPI
  - Program/Data Storage: MicroSD Card slot, 16 MBit Dataflash
  - Inputs: 3 Push buttons, 4 Dip Switches
  - Expansion connector
Daughter Boards:
- USSIO12 Features:
  - 12 input channels
  - 12 output channels - up to 150mA
- UDCO24 Features:
  - 8 output channels - up to 1.5A
  - 16 output channels - up to 150mA
- US6D12 Features:
  - 6 Switch Sensor I/O channels
  - 4 DC output channels - up to 1.5A
  - 8 DC output channels - up to 150mA

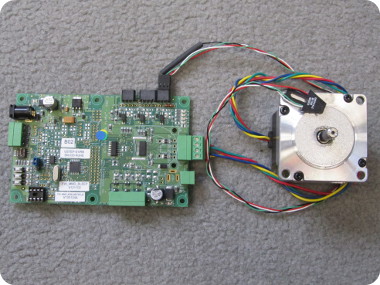

Multi-Motor Driver

Driver board for DC and Stepper Motors

Features:
- Runs 1 or 2 DC Motors or 1 Stepper Motor
- Max current rating of 2.5A at 24V
- 3 Switch/Sensor input channels
- 3 DC Output Channels (upto 150mA)
- Microprocessor: ATMega8
- Power Supply: 12-28 VDC
- Communication: RS485
- Program/Data Storage: EEPROM slot
- Inputs: 3 Push buttons, 4 Dip Switches

Custom Products & Projects

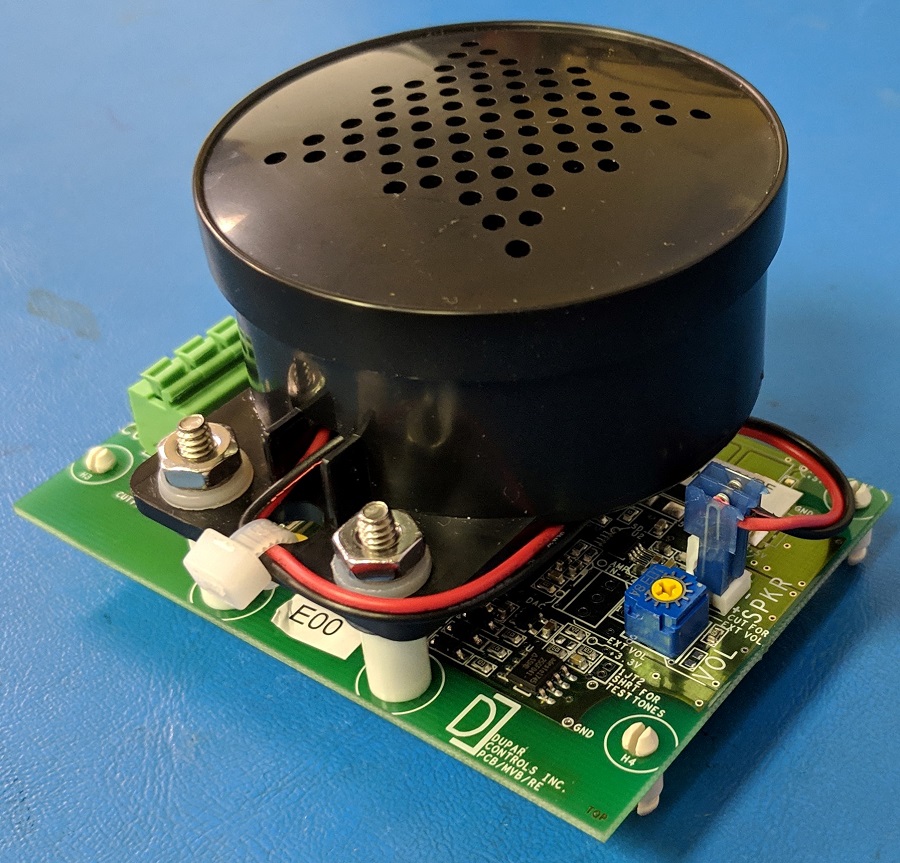

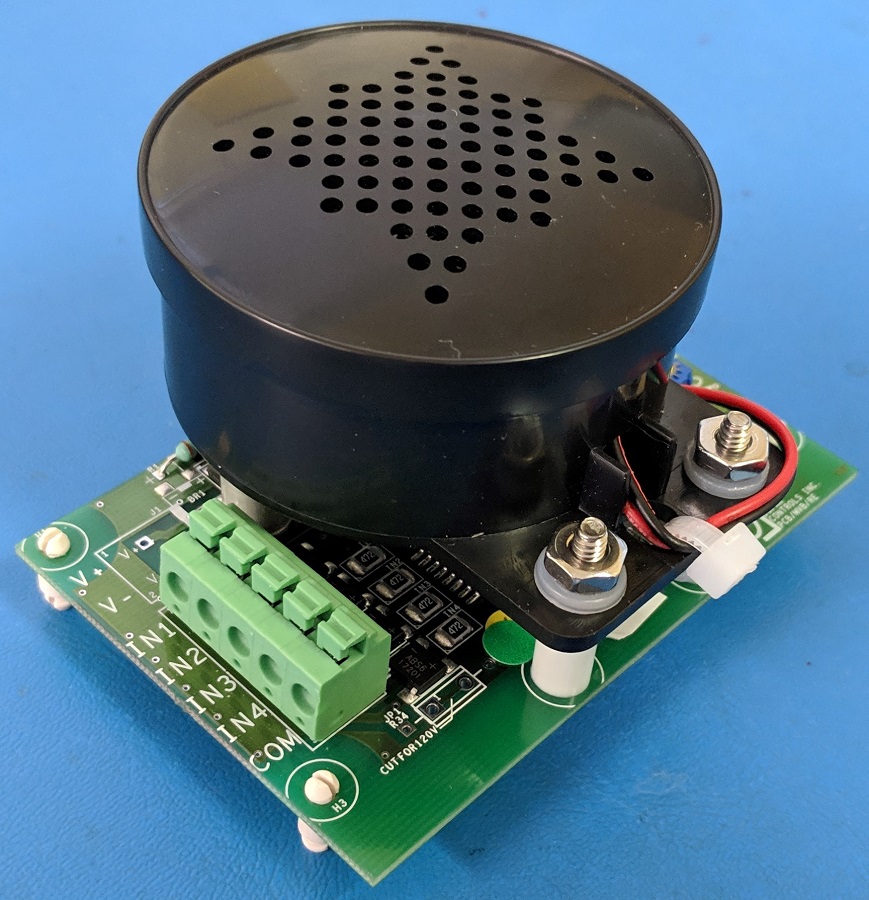

4-input audio player

4 inputs with positive or negative common
500kb flash for audio storage
8-bit mono WAV files
30-80 seconds of audio storage dependent on quality
Files stored in flash during production
Volume adjust with common Phillips screwdriver
Microprocessor: ATtiny416
Power Supply: 12-24V AC/DC

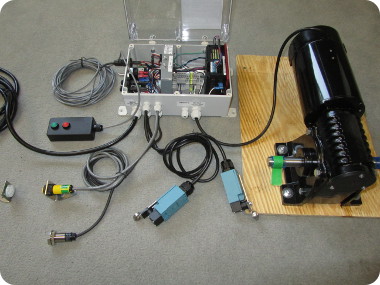

Simons Store Changeroom - Hoist Motor Control

Location: Simons Store - West Edmonton Mall

Built for Eventscape
Motor Control System for changerooms that can be lifted up out of the way!
Motor Speed Control
Push Button Penbdant Control
Limit Sensors and Switches to prevent motor overrun
Interface for wireless remote controls

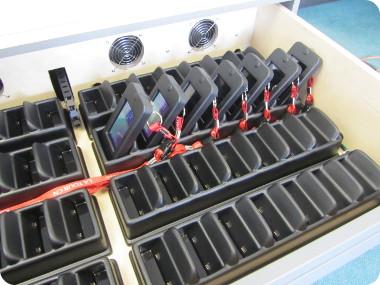

CN Tower VGuide - Battery Charger System

Location: CN Tower

Built for BaAM Powered by Zolk
Charges VGuide handheld interactive device
Cradle Connection PCB Design
Drawer mounted Power Supplies with flexible cabling
Fans and ventilation to prevent overheating

Grain Silo Temperature Monitoring System

Data Acqusition System to monitor temperature inside Grain Silos
Isolated Thermocouple Analog to Digital Converter
Thermocouple resistance measurement
Multi-channel Relay multiplexer
Electronics Hardware/software design, manufacturing, testing, repair, engineering support

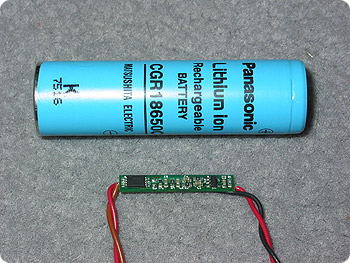

Lithium-Ion Battery Protection Circuit

Charge / Discharge Protection
Electronics Hardware design, manufacturing, testing, repair, engineering support

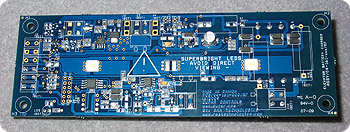

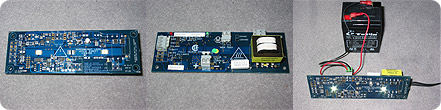

Elevator Battery Charger – Emergency Light

Conforms to Elevator and CSA Emergency Lighting Codes
Efficient / Long Life Superbright LED Illumination
120 / 24 VAC Operation, 6 VDC Battery
Charge / Discharge / Self Diagnostic Protection
Electronics Hardware/software design, manufacturing, testing, repair, engineering support
See us for other elevator lantern and wiring products

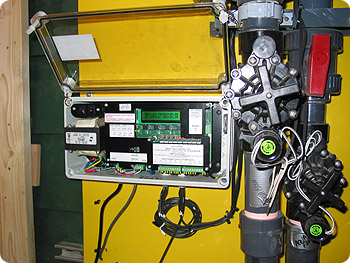

Water Valve Controller

10 Output Channels, 24VAC
2 Sensor Inputs – daisy chainable to 20 sensors
120v / 220 VAC Operation
LCD display and soft keys
Time of day enable
Spreadsheet script and sequence files
Serial communication expansion
Electronics Hardware/software design, manufacturing, testing, repair, engineering support

Product Info

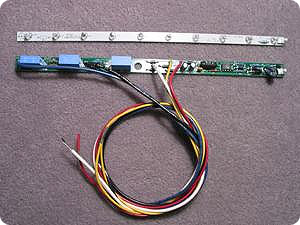

Exit Sign LED & Power Supply Board Set

C860 lighting specification
6 - 24VDC / 120VAC / 347VAC operation
Engineering support for Off-shore contract manufacturer

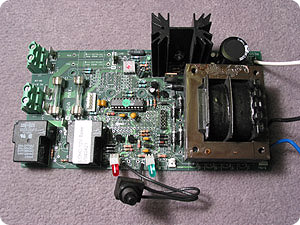

Emergency Lighting Control & Battery Charger

6VDC / 12VDC / 24VDC battery
120VAC / 347VAC operation
Microprocessor control
Self diagnosics - battery charge, lamp failure
LCD battery charge meter
Engineering support for Off-shore contract manufacturer

Numbering Machine Electronics

Microprocessor control
LCD menu display
High-performance stepping motor driver
High voltage, constant current solenoid driver
Switching power supply
Electronics Hardware/software design, manufacturing, testing, repair, engineering support

Press Operator Control Panels

Microprocessor Control electronics - serial interface to host system
Switches - panel & PCB mount
Laser cut panel matching PCBs
Lexan/vinyl label - chemical resistant
Electronics Hardware/software design, packaging design, manufacturing, testing, repair, engineering support

Intelligent Light Switch

Consumer light switch records normal usage, can operate even when homeowner is absent
Microprocessor/triac control
Volume manufactured in Singapore
Hardware/software/engineering support

Antenna System Test Equipment – Iridium – Comdev International

Microprocessor control and LED display
3 phase brushless motor and AB encoder
Serial control from host
Laser cut and bend fab of enclosures
Electronics Hardware/software design, packaging design, manufacturing, testing, repair, engineering support

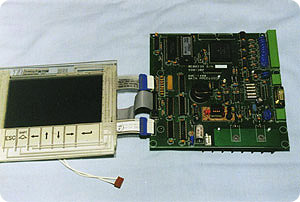

Automatic Bottle Flushing System

Detect broken bottles on filling line
Operates air and water flushing sequences to reject bottles and clean line automatically
Electronics Hardware/software design, manufacturing, testing, repair, engineering support

Other Projects

Self Diagnostic Emergency Lighting System
- Battery charger, microprocessor, LCD display
Dust Collector Control System
- Electronic control system
RF Remote Control System
- FHSS radios / 916 MHz smoke detector transmitter
Entrance Alarm System
- Full featured entrance alarm system with 10 zones, keypad control
